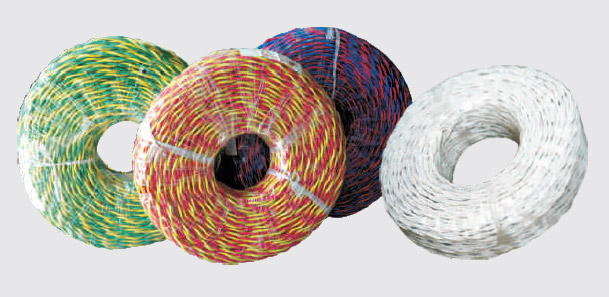

聚氯乙烯绝缘软电缆电线 227IEC42(RVB)300/300V、227IEC52(RVV）300/300V、227IEC53(RVV)300/500V、RVS 300/300V。
| 名称 |
扁形无护套软线 |
额定电压 |
300/300V |
| 型号 |
规格 |
绝缘厚度规定值 |
平均外形尺寸 |
70℃时最小绝缘电阻MΩ·km |
20℃时导体最大电阻Ω/km |
执行标准 |
|
| 下限㎜ |
上限㎜ |
|
| 227IEC42(RVB) |
2×0.5 |
0.8 |
2.5×5.0 |
3.0×6.0 |
0.0016 |
39.0 |
GB5023-1997 |
|
| 2×0.75 |
0.8 |
2.7×5.4 |
3.2×6.4 |
0.014 |
26.0 |
|
|
|
|
|
|
|
|
|
|
|
| 名称 |
轻形聚氯乙烯护套软线 |
额定电压 |
300/300V |
| 型号 |
规格 |
绝缘厚度规定值 |
平均外形尺寸 |
护套厚度规定值㎜ |
70℃时最小绝缘电阻MΩ·km |
20℃时导体最大电阻Ω/km |
执行标准 |
| 下限㎜ |
上限㎜ |
| 227IEC52(RVV) |
2×0.5 |
0.5 |
4.8或3.0×4.8 |
6.0或3.6×6.0 |
0.6 |
0.012 |
39.0 |
GB5023-1997 |
| 2×0.75 |
0.5 |
5.2或3.2×5.2 |
6.4或3.9×6.4 |
0.6 |
0.010 |
26.0 |
|
| 3×0.5 |
0.5 |
5.0 |
6.2 |
0.6 |
0.012 |
39.0 |
|
| 3×0.75 |
0.5 |
5.4 |
6.5 |
0.6 |
0.010 |
26.0 |
|
| 名称 |
普通聚氯乙烯护套软线 |
额定电压 |
300/500V |
| 型号 |
规格 |
绝缘厚度规定值 |
平均外形尺寸 |
护套厚度规定值㎜ |
70℃时最小绝缘电阻MΩ·km |
20℃时导体最大电阻Ω/km |
执行标准 |
| 下限㎜ |
上限㎜ |
| 227IEC53(RVV) |
2×0.75 |
0.6 |
6.0或3.8×6.0 |
7.6或5.2×7.6 |
0.8 |
0.011 |
26.0 |
GB5023-1997 |
| 2×1 |
0.6 |
6.4 |
8.0 |
0.8 |
0.010 |
19.5 |
|
| 2×1.5 |
0.7 |
7.4 |
9.0 |
0.8 |
0.010 |
13.3 |
|
| 2×2.5 |
0.8 |
8.9 |
11.0 |
1.0 |
0.009 |
7.98 |
|
| 3×0.75 |
0.6 |
6.4 |
8.0 |
0.8 |
0.011 |
26.0 |
|
| 3×1 |
0.6 |
6.8 |
8.4 |
0.8 |
0.010 |
19.5 |
|
| 3×1.5 |
0.7 |
8.0 |
9.8 |
0.9 |
0.010 |
13.3 |
|
| 3×2.5 |
0.8 |
9.6 |
12.0 |
1.0 |
0.009 |
7.98 |
|
| 4×0.75 |
0.6 |
6.8 |
8.6 |
0.8 |
0.011 |
26.0 |
|
| 4×1 |
0.6 |
7.6 |
9.4 |
0.9 |
0.010 |
19.5 |
|
| 4×1.5 |
0.7 |
9.0 |
11.0 |
1.0 |
0.010 |
13.3 |
|
| 4×2.5 |
0.8 |
10.5 |
13.0 |
1.1 |
0.009 |
7.98 |
|
| 5×0.75 |
0.6 |
7.4 |
9.6 |
0.9 |
0.011 |
26.0 |
|
| 5×1 |
0.6 |
8.3 |
10.0 |
0.9 |
0.010 |
19.5 |
|
| 5×1.5 |
0.7 |
10.0 |
12.0 |
1.1 |
0.010 |
13.3 |
|
| 5×2.5 |
0.8 |
11.5 |
14.0 |
1.2 |
0.099 |
7.98 |
|
| 名称 |
铝芯聚氯乙烯绝缘软电缆 |
额定电压 |
450/750V |
| 型号 |
规格 |
绝缘厚度规定值㎜ |
平均外径上限㎜ |
70℃时最小绝缘电阻MΩ·km |
20℃时导体最大电阻Ω/km |
执行标准 |
|
|
| RVS |
0.5 |
0.8 |
6.0 |
0.016 |
39.0 |
JB8734-1998 |
|
|
| 0.75 |
0.8 |
6.2 |
0.014 |
26.0 |
|
|
|
| 1 |
0.8 |
6.6 |
0.011 |
19.5 |
|
|
|
| 1.5 |
0.8 |
7.2 |
0.010 |
13.3 |
|
|
|
| 2.5 |
0.8 |
8.2 |
0.009 |
7.98 |
|
|
|
|
|
|
